Large-diameter HVLS airflow
Are you
a fan of
comfort?
Canagale, builder of large-diameter HVLS fans. See our flagship direct-drive GALE Series HVLS fans.
What is Canagale
Canagale HVLS fans are produced by Bask Industrial Co., Ltd.
Canagale fans bring a decade of low-maintenance comfort to your facility. The flagship GALE Series is built around modular parts, wide airflow coverage, low energy bills and steady conditions for people and livestock alike.
Canagale is exclusively licensed to Humber Industrial Co., Ltd., founded by Remy and Alex to sell, service and provide after-sales support in Canada.
Capable
Direct-drive PMSM motors: powerful, gearless engineering inside every fan.
Modular
Customizable, modular systems: wide coverage, high airflow, low noise.
Efficient
Powerful fans that run on as little as 0.5 kW.
Approachable
We listen to operator feedback and offer a high degree of customization.

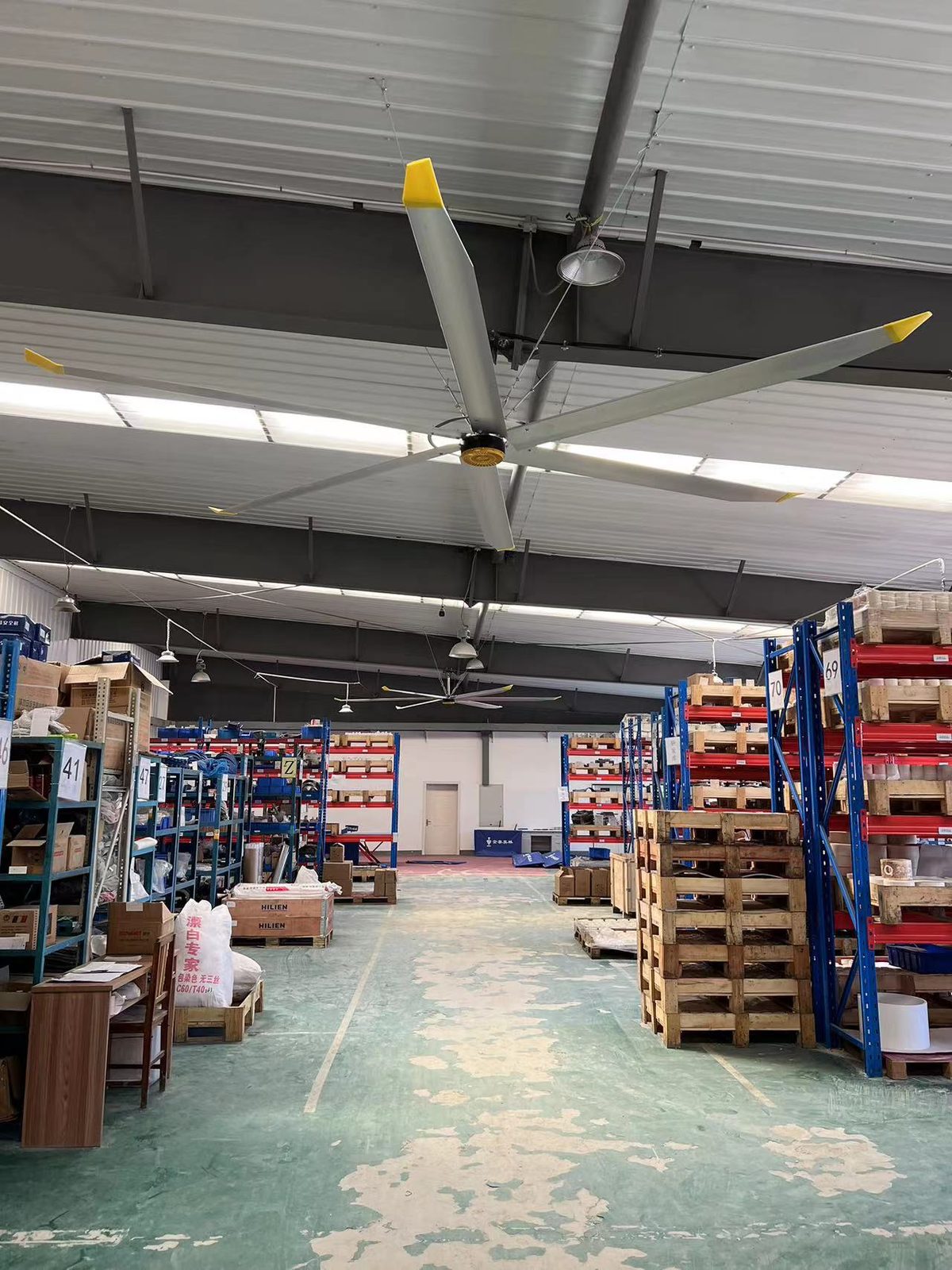

What an HVLS fan actually does
One large fan turning slowly moves far more air than a cluster of small, high-speed ones. It pushes a broad column of air to the floor, then out in a horizontal sheet, circulating the entire volume of a tall space and breaking up the trapped layers of heat, humidity and stale air.
Lower heating & cooling costs
Destratification breaks up trapped ceiling heat in winter and pushes an evaporative breeze in summer. This cuts cooling costs up to 25–49% and heating costs 20–30%.
Higher productivity
Raises the THI comfort index for people and livestock and clears airborne ammonia, lifting productivity in industrial spaces and milk yield in barns.
Better air quality
Constant gentle circulation keeps fresh air moving through the whole space instead of pooling in dead zones.
Drier, safer surfaces
Keeps concrete floors dry underfoot and discourages condensation and mold growth on stored cargo.
Whole-space coverage
Replacing a scatter of small fans with one large-diameter HVLS fan moves far more air on a fraction of the power.
Real energy efficiency
Aerodynamic blades driven by a permanent magnet synchronous motor move enormous volumes of air on very little electricity, and a smaller power bill.
Why not run the HVAC harder?
Because destratification does work HVAC can't. HVAC conditions the air near its units; a GALE fan moves the entire air column of a tall space, ventilating and cooling it on a fraction of the energy, in summer and winter alike.
- Up to 25–49% lower cooling costs
- 20–30% lower heating costs through winter destratification
- Whole-space coverage from a single fan

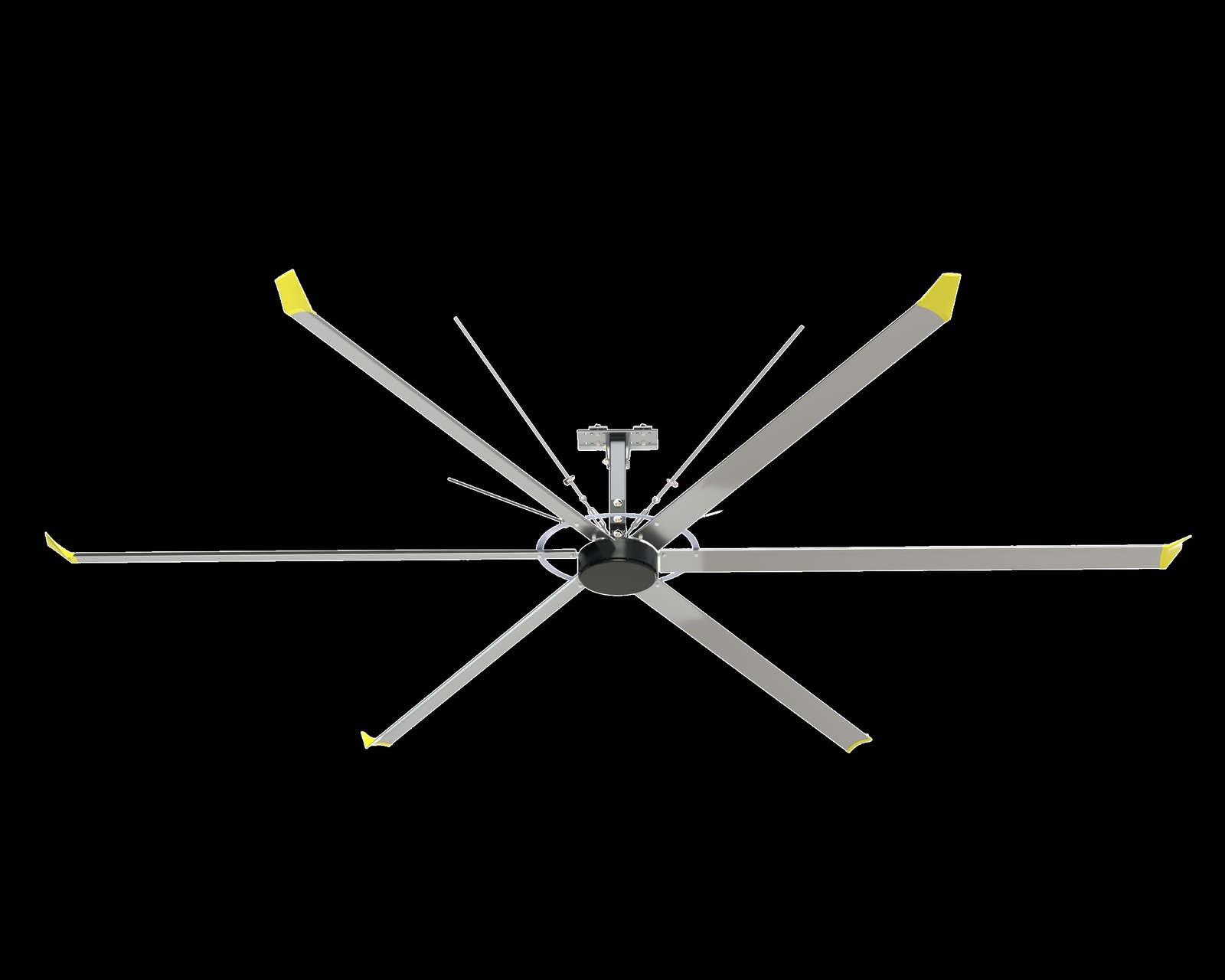

The flagship GALE Series
Nineteen models, one engineering philosophy: a permanent-magnet synchronous (PMSM) motor driving the blades directly. No gearbox, no belts, nothing to grease. Smooth, powerful, and maintenance-free for 10+ years. Single-phase 220V and three-phase 380V models (±10%) that stay under 38 dB.
The full lineup
All models: PMSM direct drive · 1-ph 220V / 3-ph 380V ±10% · ≤ 38 dB| Model | Diameter | Blades | Power | Max Speed | Max Airflow | Coverage | Install Height | Weight |
|---|---|---|---|---|---|---|---|---|
| G-7.3G | 7.3 m · 24 ft | 6 | 1.8 kW | 58 RPM | 16,300 m³/min | 2,000 m² | 7–20 m | 106 kg |
| G-7.3E | 7.3 m · 24 ft | 8 | 1.8 kW | 55 RPM | 17,930 m³/min | 2,000 m² | 7–20 m | 122 kg |
| G-7.3S | 7.3 m · 24 ft | 6 | 1.5 kW | 60 RPM | 16,300 m³/min | 1,500 m² | 7–18 m | 103 kg |
| G-7.3 | 7.3 m · 24 ft | 6 | 1.5 kW | 65 RPM | 14,800 m³/min | 1,000 m² | 7–18 m | 106 kg |
| G-7.3F | 7.3 m · 24 ft | 5 | 1.5 kW | 60 RPM | 14,800 m³/min | 1,500 m² | 6–13 m | 98 kg |
| G-7.3M | 7.3 m · 24 ft | 5 | 1.5 kW | 65 RPM | 13,200 m³/min | 1,000 m² | 7–12 m | 98 kg |
| G-6.1 | 6.1 m · 20 ft | 6 | 1.0 kW | 65 RPM | 12,900 m³/min | 800 m² | 6–13 m | 94 kg |
| G-6.1D | 6.1 m · 20 ft | 5 | 1.0 kW | 70 RPM | 12,900 m³/min | 800 m² | 5–11 m | 82 kg |
| G-5.5 | 5.5 m · 18 ft | 6 | 0.75 kW | 70 RPM | 12,200 m³/min | 600 m² | 5–10 m | 72 kg |
| G-5.0 | 5 m · 16 ft | 6 | 0.75 kW | 80 RPM | 11,500 m³/min | 500 m² | 4–6 m | 68 kg |
| G-5.0D | 5 m · 16 ft | 5 | 0.6 kW | 95 RPM | 9,700 m³/min | 450 m² | 4–7 m | 60 kg |
| G-4.2 | 4.2 m · 14 ft | 6 | 0.7 kW | 75 RPM | 10,600 m³/min | 400 m² | 4–7 m | 64 kg |
| G-4.2D | 4.2 m · 14 ft | 5 | 0.5 kW | 95 RPM | 8,000 m³/min | 350 m² | 4–7 m | 50 kg |
| G-3.6E | 3.6 m · 12 ft | 8 | 0.5 kW | 90 RPM | 7,320 m³/min | 300 m² | 4–6 m | 48 kg |
| G-3.6 | 3.6 m · 12 ft | 5 | 0.5 kW | 100 RPM | 6,560 m³/min | 300 m² | 4–6 m | 42 kg |
| G-3.0E | 3 m · 10 ft | 8 | 0.5 kW | 100 RPM | 6,450 m³/min | 250 m² | 4–5 m | 44 kg |
| G-3.0 | 3 m · 10 ft | 5 | 0.5 kW | 110 RPM | 5,530 m³/min | 250 m² | 4–5 m | 38 kg |
| G-2.4E | 2.4 m · 8 ft | 8 | 0.5 kW | 110 RPM | 5,320 m³/min | 150 m² | 4–5 m | 40 kg |
| G-2.4 | 2.4 m · 8 ft | 5 | 0.5 kW | 120 RPM | 4,550 m³/min | 150 m² | 4–5 m | 34 kg |
Not sure which model fits your building? Jump over to Humber Industrial to get in touch for sizing. Installation height is optimal at about 1.1× the fan diameter above the floor.
Running multiple fans? Meet the GALE Master.
GALE Series fans connect by wired or wireless protocols to the GALE Master, a smart control unit that automatically manages up to eight identical fans using live data from temperature-humidity (THI) sensors. One controller keeps the whole barn or warehouse at target conditions, with no manual adjustment as the weather changes.
Main components

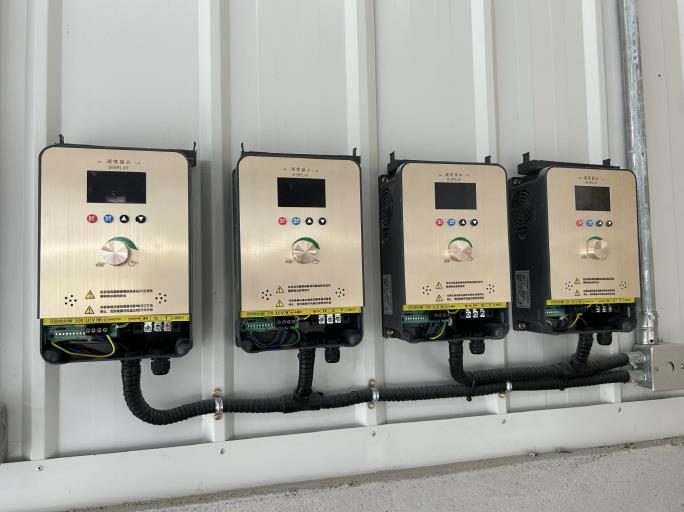

VFD Controller
Variable-frequency drive matched to your electrical supply, pre-programmed at the factory.
PMSM Motor
Permanent-magnet synchronous direct drive. No gearbox, maintenance-free 10+ years.
Aluminum Blades
Streamlined aerofoil blades with safety-yellow winglet tips, 5 to 8 per fan.
Mounting Bracket
Standard kit hangs the fan from a steel I-beam; concrete, tube and angle-bar options available.
Safety Guywires
Steel stabilization cables that secure the fan and keep it running true.
The story of Canagale
Canagale is a trademarked line of HVLS fans manufactured by Bask Industrial Co., Ltd. Running a dairy barn or an industrial facility in Canada puts real demands on air. Summer heat leaves air stagnant, damp and heavy; winter pushes the warmth up to the ceiling and leaves the floor cold. HVLS fans were built for exactly those two problems. But HVLS in North America has grown into sprawling product lines and marketing names that make buyers work to find the fan they need.
That is why we developed Canagale: highly modular HVLS fans that simplify equipment selection, installation, budgeting and operation. One flagship product line, with every specification published on this site, so the heavy-duty airflow your operation depends on stays the simple part.
In Canada, Canagale products are exclusively sold and serviced by Humber Industrial Co., Ltd., based in Toronto, Ontario. We prioritize close relationships with our customers: manufacturing quality HVLS equipment, listening to the needs of operators, and standing behind every fan we build.
Get Canagale in Canada
Across Canada, Canagale is represented by its authorized distributor, Humber Industrial Co., Ltd., your single point of contact for sizing, quotes, installation, service and technical support for Canagale products.
Ready to move more air?
Tell our Canadian distributor about your space and get an equipment recommendation and proposal back fast.
Contact our exclusive distributorGet Galed.
